Professional Dedicated Circuit & 240V Outlet Installation

Professional Dedicated Circuit & 240V Outlet Installation

Dedicated electrical circuits prevent dangerous overloads while ensuring optimal performance for high-power appliances. According to the Electrical Safety Foundation International, approximately 51,000 electrical home structure fires occur annually, claiming nearly 500 lives and causing over $1.3 billion in property damage^[1]. Proper dedicated circuit installation reduces fire risk by 50% when combined with modern safety devices^[2]. Echelon Electric specializes in code-compliant 240V outlet installations that protect your home while powering today’s energy-intensive appliances safely and efficiently.

Why Dedicated Circuits Matter in 2025

Modern homes demand significantly more electrical capacity than residential systems built even a decade ago. The proliferation of electric vehicles, high-efficiency heat pumps, induction cooking appliances, and smart home technologies has fundamentally changed household electrical load profiles. The National Fire Protection Association reports that electrical distribution equipment caused an average of 31,647 home fires annually between 2011-2023, resulting in 425 deaths and $1.6 billion in direct property losses^[3].

Dedicated circuits address this challenge by providing isolated electrical pathways for high-demand appliances, preventing circuit overloads that can cause fires, equipment damage, and service interruptions. The 2023 National Electrical Code mandates specific dedicated circuit requirements for major appliances, reflecting the critical importance of proper electrical infrastructure^[4]. Homeowners benefit from improved safety, enhanced appliance performance, and compliance with insurance requirements that increasingly scrutinize electrical system adequacy.

Professional installation ensures adherence to NFPA 70 standards while accommodating local code variations and utility requirements. Load calculation analysis, required by NEC Article 220, determines appropriate circuit sizing and prevents dangerous undersizing that contributes to electrical failures^[5]. Modern installations also incorporate advanced safety devices including Arc-Fault Circuit Interrupters (AFCIs) and Ground Fault Circuit Interrupters (GFCIs) that provide additional protection layers.

Service Coverage & Options

Included Services

• 240V outlet installation for electric dryers, ranges, and cooktops
• Welder circuit installation with NEMA 6-50 outlets
• Mini-split air conditioning and heat pump dedicated circuits
• Sump pump circuit installation and upgrades
• Garage and workshop high-power outlet installation
• Electric vehicle charging station circuits (NEMA 14-50/6-50)
• Comprehensive electrical load calculations and panel assessments

Typical Use Cases

Dedicated circuit installations serve diverse residential applications, from essential safety systems to modern convenience appliances. New construction projects require comprehensive circuit planning to accommodate anticipated electrical loads, while retrofit installations address evolving household needs. Kitchen renovations frequently necessitate upgraded circuits for induction ranges and high-capacity dishwashers. Garage workshops benefit from dedicated 240V circuits that support welding equipment, compressors, and electric vehicle charging simultaneously.

The following table outlines standard dedicated circuit requirements based on appliance specifications and National Electrical Code guidelines:

Safety, Codes & Sizing Essentials

Electrical safety depends fundamentally on proper circuit sizing and load calculations. The Consumer Product Safety Commission estimates that Arc-Fault Circuit Interrupters (AFCIs) could prevent 50% of home electrical fires, while Ground Fault Circuit Interrupters (GFCIs) have reduced electrocutions by 80% since their introduction^[6]. Modern dedicated circuit installations incorporate both technologies where required by the 2023 National Electrical Code.

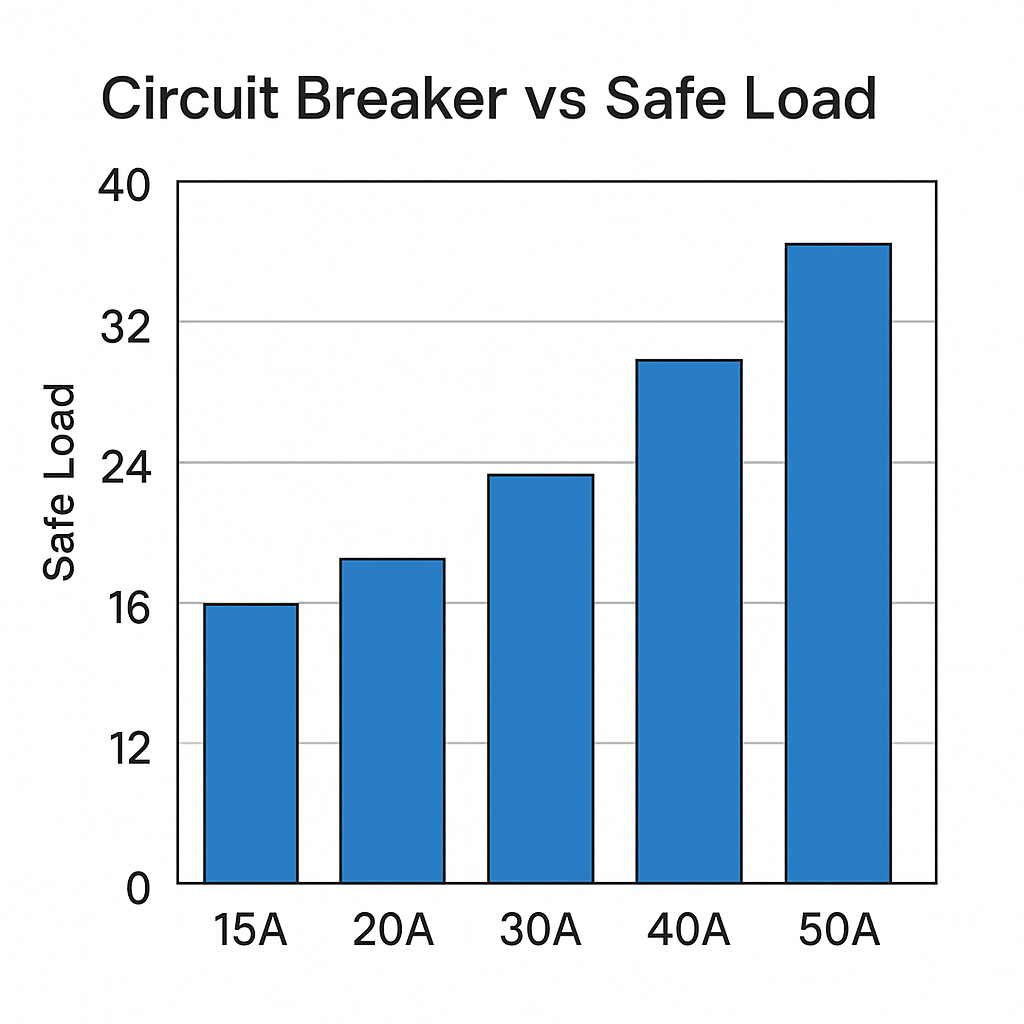

Load calculations follow NEC Article 220 methodology, which establishes demand factors for different appliance categories. General lighting loads require 3 volt-amperes per square foot, while small appliance circuits demand 1,500 VA each with a minimum of two circuits required^[7]. The 80% rule mandates that continuous loads not exceed 80% of circuit capacity, ensuring adequate safety margins during normal operation.

NEMA outlet configurations ensure proper appliance compatibility while preventing dangerous mismatches. NEMA 14-50 outlets provide both 240V and 120V capability through four-wire connections (two hot, neutral, ground), while NEMA 6-50 outlets supply 240V only through three-wire connections (two hot, ground)^[9]. Professional installation verifies proper grounding, adequate wire gauge selection, and compliance with local electrical codes that may exceed minimum NEC requirements.

Installation Process, Quality & Limitations

Professional dedicated circuit installation follows a systematic five-step process ensuring code compliance and long-term reliability. Initial assessment includes comprehensive load calculations, electrical panel capacity verification, and route planning for new circuit runs. Proper wire sizing calculations account for voltage drop over distance, ambient temperature conditions, and future load growth potential.

Circuit installation begins with electrical panel modifications, including double-pole breaker installation and appropriate labeling per NEC requirements. Wire routing through walls, attics, or basements requires careful attention to thermal derating factors and physical protection requirements. NEMA outlet installation involves proper box mounting, secure wire connections using approved methods, and thorough testing before energization.

Quality verification includes voltage testing at the outlet, ground fault testing for GFCI-protected circuits, and load testing under actual operating conditions. A recent installation example involved a 50-amp EV charging circuit where initial testing revealed a loose neutral connection that could have caused dangerous arcing. Professional installation identified and corrected this issue before system energization, preventing potential fire hazards.

Installation limitations include existing panel capacity constraints, structural obstacles affecting wire routing, and local code requirements that may exceed standard specifications. Older homes with aluminum wiring, knob-and-tube systems, or inadequate grounding present additional challenges requiring specialized expertise. Basement installations in flood-prone areas require elevated outlet placement and enhanced moisture protection measures.

Permit requirements vary by jurisdiction but typically apply to all new dedicated circuits. Professional contractors handle permit applications, inspection scheduling, and code compliance documentation. Some installations may require utility coordination for service upgrades, particularly when adding multiple high-capacity circuits that approach existing service panel limits.

Action Plan

Homeowners considering dedicated circuit installation should begin with a comprehensive electrical assessment to identify current system capacity and future needs. Document all planned appliances with their electrical specifications, including voltage, amperage, and installation locations. Measure distances from the electrical panel to proposed outlet locations, noting any obstacles that might complicate wire routing.

Evaluate your electrical panel’s available capacity by counting unused breaker spaces and calculating existing load against total service capacity. Most residential panels provide 100, 150, or 200-amp service, with dedicated circuits for major appliances requiring careful load management to prevent overloading. Consider future electrical needs including electric vehicle charging, pool equipment, or workshop additions that might require additional circuits.

Schedule a professional evaluation with a licensed electrician to verify load calculations, assess code compliance requirements, and obtain accurate installation estimates. Professional assessment identifies potential complications early, preventing costly surprises during installation. Qualified contractors provide detailed proposals including permit costs, material specifications, and completion timelines.

Ready to upgrade your home’s electrical infrastructure with professional dedicated circuit installation? Contact Echelon Electric today for a comprehensive assessment and detailed proposal. Our licensed electricians ensure code-compliant installations that protect your investment while powering your modern lifestyle safely and efficiently.

Schedule Your Electrical Assessment

Future Outlook

Electrical infrastructure requirements continue evolving as smart home technologies, electric vehicles, and high-efficiency appliances become standard residential features. The 2026 National Electrical Code revision will likely mandate additional AFCI protection areas and enhanced surge protection requirements, reflecting ongoing safety improvements. Smart circuit breakers with remote monitoring capabilities are emerging as valuable tools for load management and predictive maintenance.

Electric vehicle adoption drives increasing demand for 240V charging circuits, with many utilities offering rebates for Level 2 charging station installations. Heat pump technology advancement requires careful electrical planning as these systems replace traditional gas heating with high-efficiency electric alternatives. Energy storage systems and solar installations add complexity to residential electrical design, requiring sophisticated load management strategies.

Installation challenges include aging electrical infrastructure in older homes, skilled electrician shortages affecting project timelines, and evolving code requirements that may necessitate system upgrades. Homeowners benefit from proactive electrical planning that anticipates future needs while addressing current safety and capacity limitations.

Key Takeaways

• Dedicated circuits prevent dangerous overloads while ensuring optimal appliance performance per NEC Article 220 requirements^[10]
• Professional installation reduces fire risk by up to 50% when combined with modern AFCI and GFCI protection devices^[11]
• Circuit sizing follows the 80% rule with maximum continuous loads not exceeding 80% of breaker capacity for safety margins^[12]
• NEMA outlet specifications ensure proper appliance compatibility with 14-50 outlets providing dual voltage capability and 6-50 outlets for 240V-only applications^[13]
